Control boards and safety modules

Safety prevails over everything else.
We use control panels and security modules of recognised European brands and high reliability.

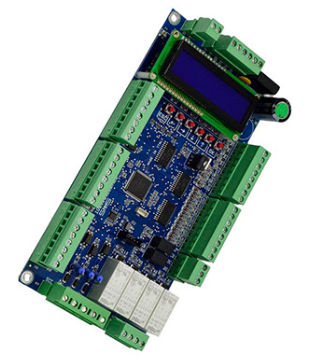

Control boards for elevators, stretchers and car-lifts

PERFORMANCES AND MAIN FEATURES:
Up to 32 stops.
Simplex to quadruplex.
Photocell input, complete, excess load, door closing button and outdoor & cabin fire signal.
CAN BUS or Thread to Thread communication in Cab.
Thread to Thread communication in landing.
Selective Up-Down / Selective Down / Universal.
Single and double boarding (simultaneous / alternate / selective).
Serial cab light timing (configurable in minutes and seconds).
Real time clock.
Visual interpretation of the input and output signals to the panel by means of LEDs on the control board.
Output for programmable display in binary gray or 1 pole per floor.

PARAMETRISATION AND VISUALISATION:
Programming console and display incorporated to the control board of the cabinet.
Simple and intuitive setting of parameters: times, settings, functions, etc.
Multi-language menu in EN, FR, ES, IT.
9-digit access code.
Configurable call log.
Output for single-phase and 3VF automatic doors.
Output for common positive buttons with 24Vdc lights.
Output for open door signaling, it works, goes up and down at 24Vdc.
Locking for excessive travel time in fast and slow.
Selection of absolute encoder (Optional).
Regulation by priority time menu in the cabin.
A single base plate for all types of elevators which allows reducing the number of spare parts. Record of 32 last faults.
Signaling via LCD display integrated in the control board and indicating: fault code, description, date, time.
7 fully programmable and interchangeable outputs if necessary.

Homelift and forklifts control plates:

PERFORMANCES AND MAIN FEATURES:
Simplex.
Universal with cabin door up to 8 stops.
Selective down to 4 stops.
Universal Dead Man (Without cabin door) up to 4 stops.
Safety series and silent contactors at 24 Vac.
Full Thread to Thread communication.
Double boarding: ALTERNATE OR SIMULTANEOUS (NOT SELECTIVE).
Output for single-phase automatic door and 3VF.
Serial cab light timing (configurable in minutes and seconds).
Configurable call log (in selective descent).
Optional voice synthesis through a display in the cabin.
Photocell input, complete, excess load, door closing button.
Management of short stops (minimum required between each floor 400mm).
Visual interpretation of the input and output signals to the panel by means of LEDs on the control board.
Output for programmable display in binary gray or 1 pole per floor.
Output for common negative pushbuttons with lights at 24Vdc. Output for open door signaling, it works, goes up and down at 24Vdc.
Blocking for excessive travel time in fast and slow.
Transformer not required, working in 24V.
PARAMETRISATION AND VISUALISATION:
Programming console and display incorporated to the control card of the cabinet.
Simple and intuitive setting of parameters: times, settings, functions, etc.
Multi-language menu in EN, FR, ES, IT.
9-digit access code.
Configurable call log.
Regulation by priority time menu in the cabin.
A single motherboard for all types of Homelifts which allows to reduce the number of spare parts. Record of 32 last failures.
Signaling via LCD display integrated in the control board and indicating: fault code, description, date, time.
5 fully programmable and interchangeable outputs if necessary.

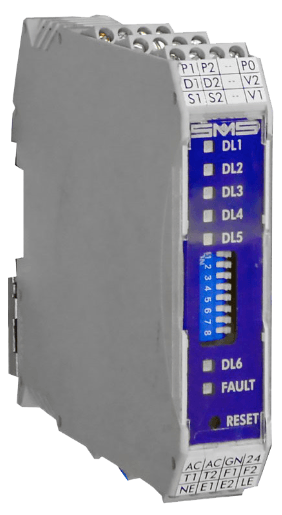

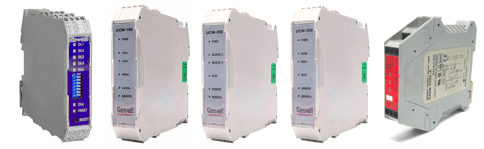

Security modules

  • Safety module A3 for brake micros
  • Safety module A3 for limiter
  • Safety module A3 for electronic valves
  • Safety circuit for re-leveling
Safety prevails over everything else.
We use certified security modules of recognized European brands and high reliability.
