Lifts, stretchers and car lifts

CONTROL PANELS
For lifts, stretchers and car lifts

PERFORMANCES AND MAIN FEATURES:

Dual voltage control panel: 230 Vac / 400 Vac.
Up to 32 stops.
Simplex to quadruplex.
Safety series and contactors at 110 Vac.
Negative Common Display (in standard, Optional Positive Common). Optional voice synthesis through a cabin display.
Input for photocell, complete, excess load, door closing push-button and outdoor and cab fire signal.
CAN bus or wire communication in Cabin.
Selective Up-Down / Selective Down / Universal.
Single and bi-directional (simultaneous / alternate / selective, for controls with CANBUS in the cabin).
Serial cab light timing (configurable in minutes and seconds).
Real time clock.
Visual interpretation of the input and output signals to the panel through LEDs on the control board.
Output for programmable display in binary gray or 1 pole per floor.
Output for single-phase automatic door and 3VF.
OP3 for three-phase door management.
Output for common positive pushbuttons with lights at 24Vdc.
Output for open door signaling, it works, goes up and down at 24Vdc. Locking for excessive travel time in fast and slow.
Multi-voltage transformer, for power supply brake and multi tension cam. Outputs: 50/60/80/110/125/190 / 210V.

PARAMETRISATION AND VISUALISATION:

Programming console and display incorporated in control card of the cabinet.
Simple and intuitive setting of parameters: times, settings, functions, etc.
Multi languages menu in EN, FR, ES, IT.
9-digit access code.
Configurable call log.
Regulation by priority time menu in the cabin.
A single motherboard for all types of elevators which allows to reduce the number of spare parts.
Record of 32 last failures. Signaling via LCD display integrated in the control board and indicating: fault code, description, date, time.
7 fully programmable and interchangeable outputs if necessary.
HOLLOW SELECTION (POSITIONING):
Magnetic (flip-flops incorporated in the magnetic fingers).
Optical selection (Optional).
Selection with absolute encoder in hollow (Optional).

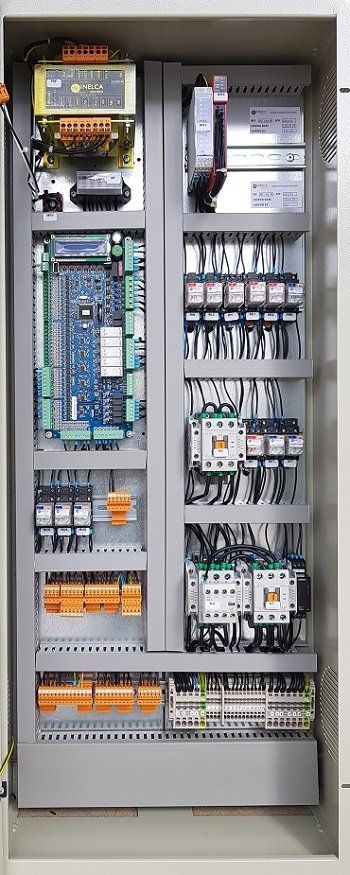

WITH MACHINE ROOM
(HYDRAULIC) DIRECT START

ADDITIONAL TECHNICAL CHARACTERISTICS:
Open door re-leveling through re-leveling module.
Automatic rescue device in high speed in case of power failure with opening of doors when arriving at the plant.
Valve control standard EN81-1 A:3.
Standard cabinet RAL 7032 with dimensions Height x Depth x Width: 1000x400x180mm. Wide lower gutter for optimal wiring placement.
Exclusive system of cabinet placement:
Assembly by a single person.
Easy fixing by means of square to hang and fix iron to the wall.
Frame with detachable door.
Optional Soft Stop.
Optional Soft Starter (Central with star triangle valve).
Optional frequency inverter.

WITH MACHINE ROOM
(HYDRAULIC) STAR DELTA START

ADDITIONAL TECHNICAL CHARACTERISTICS:
• Open door re-leveling through re-leveling module.
• Automatic rescue device in high speed in case of power failure with opening of doors when arriving at the plant.
• Valve control standard  EN81-1 A:3.
• Standard cabinet RAL 7032 with dimensions Height x Depth x Width: 1000x400x180mm.
• Wide lower gutter for optimal wiring placement.
• Exclusive system of cabinet placement:
• Assembly by a single person.
• Easy fixing by means of square to hang and fix iron to the wall.
• Frame with detachable door.
• Optional Soft Stop.
• Optional frequency inverter.

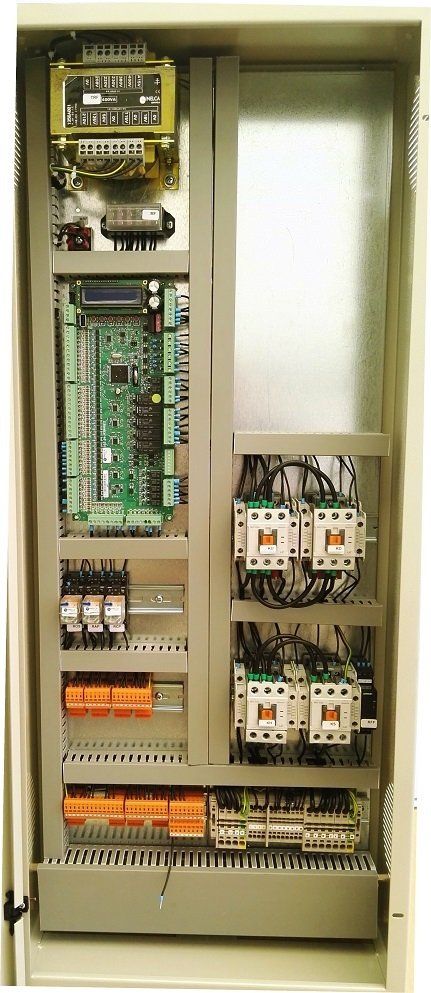

WITH MACHINE ROOM
GEAR MOTOR 1 AND 2 SPEEDS

ADDITIONAL TECHNICAL CHARACTERISTICS:
Thermal protection for old engines (Optional).
Standard cabinet RAL 7032 with dimensions Height x Depth x Width: 1000x400x180mm. Wide lower gutter for optimal wiring placement.
Exclusive system of cabinet placement:
Assembly by a single person.
Easy fixing by means of square to hang and fix iron to the wall.
Frame with detachable door.

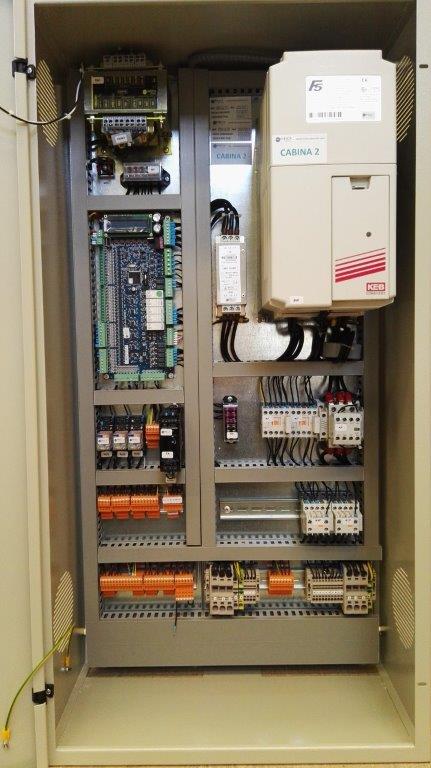

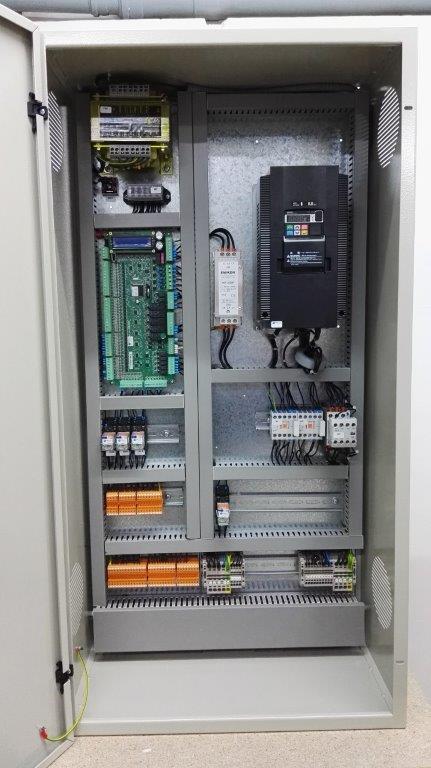

WITH MACHINE ROOM
GEAR MOTOR (VVVF-OPEN OR CLOSED LOOP)

ADDITIONAL TECHNICAL CHARACTERISTICS:
Open loop: OMRON drive model by default, 230/400V according to grid voltage
(Optional: KEB or Zielh Abegg).
Closed loop: Drive model by default with KEB encoder card by default, 230/400V according to grid voltage (Optional: Zielh Abegg).
Drive programming according to motor characteristics.
Manual or automatic rescue by decompensation in case of power failure with opening of doors when arriving at the plant.
Brake control standard EN81-1 A:3. (Optional).
Standard cabinet RAL 7032 with dimensions Height x Depth x Width: 1000x500x300mm. Wide lower gutter for optimal wiring placement.
Exclusive system of cabinet placement:
Assembly by a single person.
Easy fixing by means of square to hang and fix iron to the wall.
Frame with detachable door.

WITH MACHINE ROOM
GEARLESS (VVVF CLOSED LOOP)

ADDITIONAL TECHNICAL FEATURES:
Drive model KEB or Zielh Abegg 230/400V depending on the grid voltage.
Drive programming according to motor characteristics.
Manual or automatic rescue by decompensation in case of power failure with opening of doors when arriving at the plant.
Brake control standard EN81-1 A:3. (Optional).
Standard cabinet RAL 7032 with dimensions Height x Depth x Width: 1000x500x300mm. Wide lower gutter for optimal wiring placement.
Exclusive system of cabinet placement:
Assembly by a single person.
Easy fixing by means of square to hang and fix iron to the wall.
Frame with detachable door.

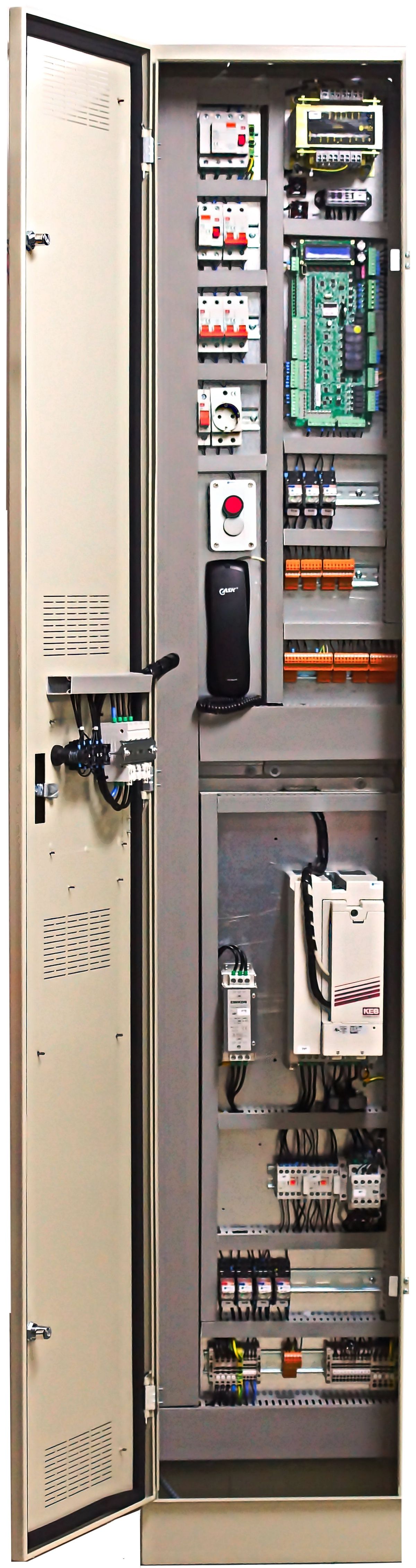

NO MACHINE ROOM
GEARLESS (VVVF CLOSED LOOP)

ADDITIONAL TECHNICAL CHARACTERISTICS:

Drive model with KEB encoder card by default, 230/400V according to grid voltage (Zielh Abegg optional).
Courtesy led light of 3mts that illuminates the entire cabinet (Optional).
Low voltage protections included.
Drive programming according to motor characteristics.
Manual or automatic rescue by decompensation in case of power failure with opening of doors when arriving at the plant.
Brake control standard EN81-1 A:3. (Optional).
Standard cabinet RAL 7032 with dimensions Height x Depth x Width: 2190x400x250mm
(INOX cabinet optional).
Wide lower lateral gutter for optimal wiring placement.
OPTIONAL: Narrow cabinet RAL 7032 with dimensions Height x Depth x Width: 2190x220x210/150mm with hollow power cabinet of 1000x300x300mm (INOX cabinet optional).
