Single family and forklift

CONTROL PANELS For single-family homes and forklifts

Single family elevators (Homelift),forklifts and elevators that respond to the Machinery regulations.

PERFORMANCES AND MAIN FEATURES:

Dual voltage: 230 Vac / 400 Vac.
Simplex.
Universal with cabin door up to 8 stops.
Selective descent up to 4 stops.
Universal Dead Man (Without cabin door) up to 4 stops.
Security series and silent contactors at 24 Vac.
Common positive display.
Communication Thread to Thread.
Double boarding ALTERNATE OR SIMULTANEOUS
(NOT SELECTIVE).
Output for single-phase and 3VF automatic door.
OP3 for three-phase door management.
Serial cab light timing (configurable in minutes and seconds).
Configurable call log (on selective descent) .
Optional voice synthesis via cabin display.
Photocell input, complete, excess load, push button closing doors.
Management of short stops (minimum required between  floors 400mm).
Visual interpretation of the input and output signals to the panel by means of LEDs on the control board.
Display output programmable in binary gray or 1 pole per floor.
Output for common negative pushbuttons with lights at 24Vdc.
Output for open door signaling, works, goes up and down at 24Vdc.
Locking for excessive travel time in fast and slow.
Without transformer, operation in 24V.

PARAMETRISATION AND VISUALISATION:

Programming console and display incorporated in the control card of the cabinet.
Simple and intuitive setting of parameters: times, settings, functions, etc.
Multi-language menu in EN, FR, ES, IT.
9-digit access code.
Configurable call log .
Regulation by priority time menu in the cabin.
A single motherboard for all types of Homelifts which allows reducing the number of spare parts.
Record of 32 last faults.
Signaling via LCD display integrated in the control board and indicating: fault code, description, date, time.
5 fully programmable and interchangeable outputs if necessary.
HOLLOW SELECTION (POSITIONING):
Magnetic (flip-flops incorporated in the magnetic fingers). Regulation by priority time menu in the cabin.
A single base plate for all types of Homelift which allows reducing the number of spare parts.
Record of 32 last faults.
Signaling via LCD display integrated in the control board and indicating: fault code, description.
5 fully programmable and interchangeable outputs if necessary.

OLEODYNAMIC CONTROL PANELS.

Iron ready to be placed into the cabin with switchboard. Dimensions: Width 578mm x Height 421mm. OPTIONAL: galvanized cabinet-lid. Dimensions: Width 607mm x Height 426mm x Depth 148mm.
Valves in 24Vdc. No emergency valve required.
Automatic rescue in fast speed in case of power failure.
Optional door opening via UPS for door operator (not included).

WITH MACHINE ROOM

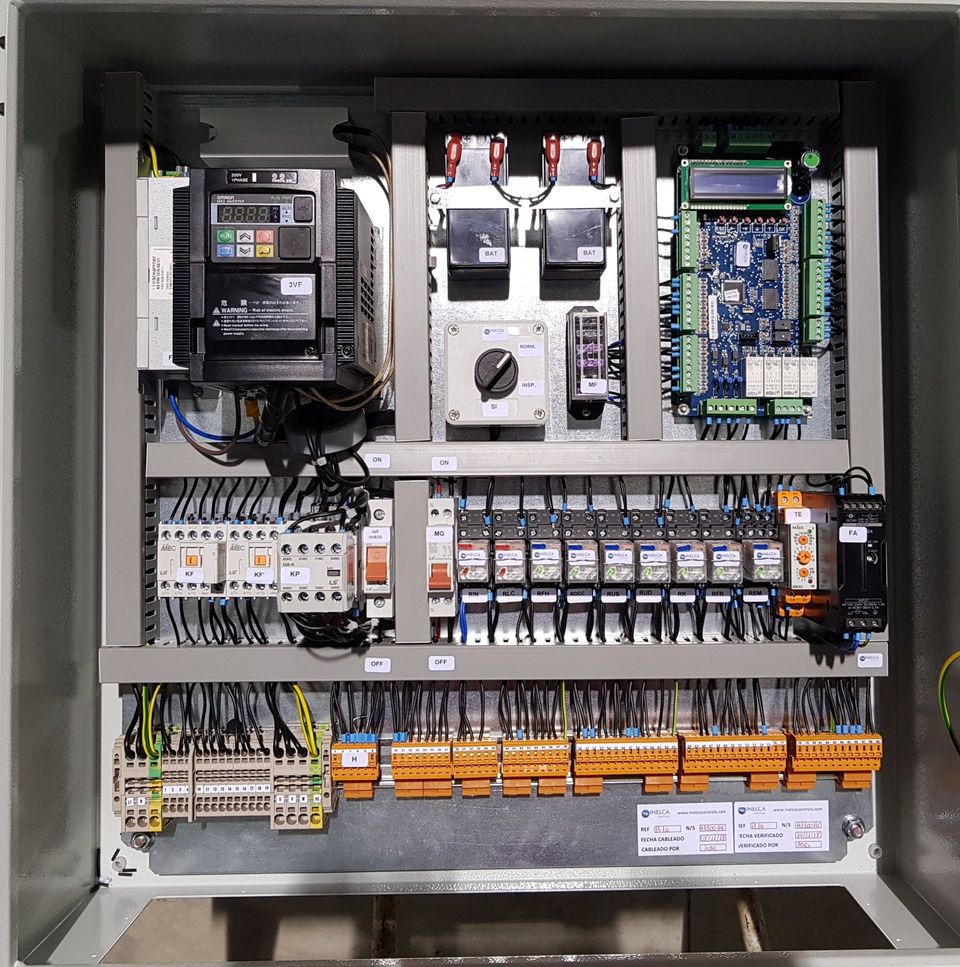

VVVF reducer Open loop Omron drive

Ral 7032 epoxy cabinet Dimensions: Width 600mm x Height 600mm x Depth 200mm.
Omron Open loop drive.
Drive programming according to motor characteristics.
Automatic rescue by decompensation by brake control in case of power failure.
Optional door opening via UPS for door operator (not included).

WITH MACHINE ROOM

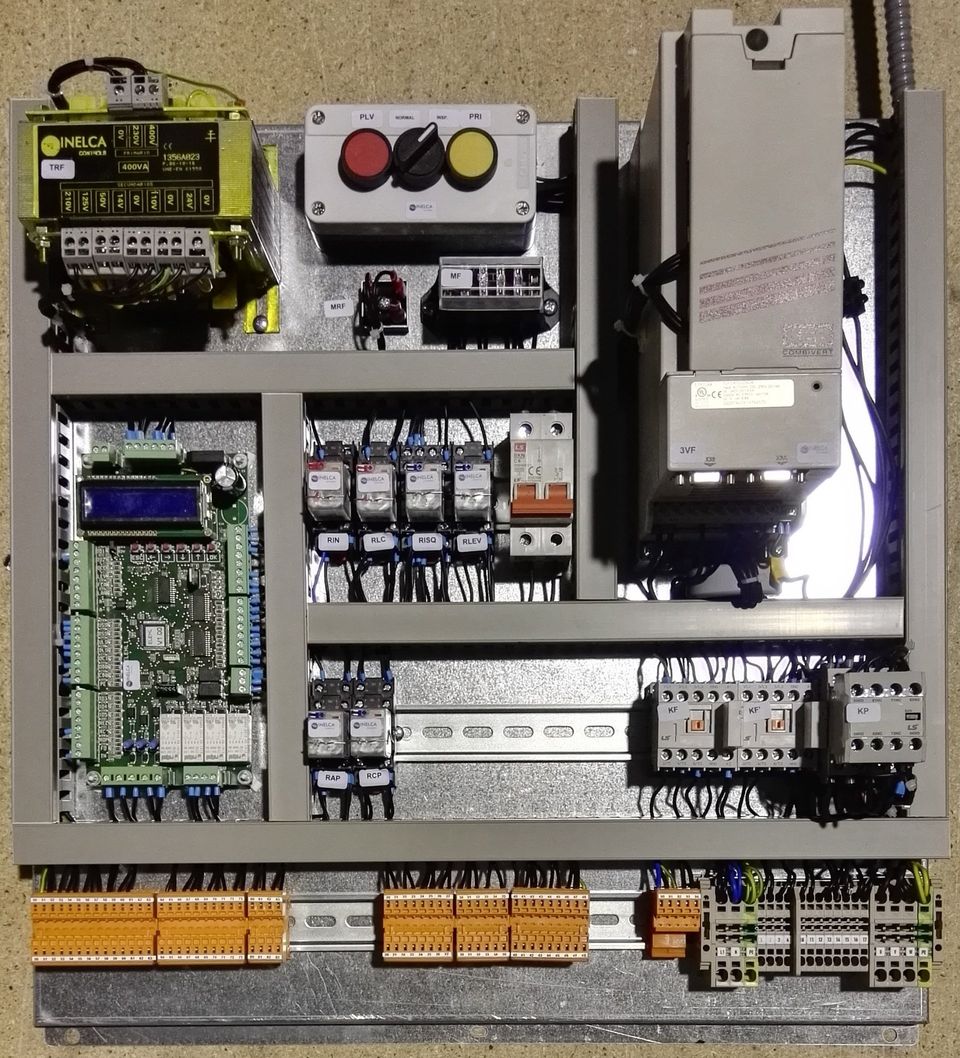

Gearless VVVF Closed Loop KEB Drive

Ral 7032 epoxy cabinet Dimensions: Width 600mm x Height 600mm x Depth 200mm.
Keb or LS drive with encoder card.
Drive programming according to motor characteristics.
Automatic rescue by decompensation by brake control in case of power failure.
Optional door opening via UPS for door operator (not included).

CONTROL PANELS WITHOUT MACHINE ROOM

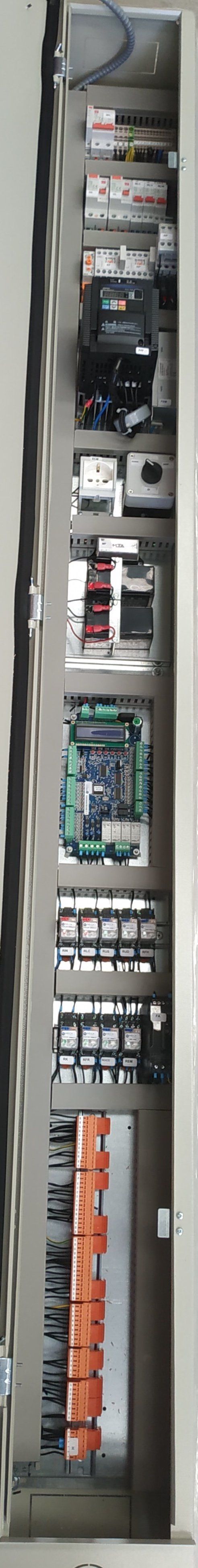

VVVF reducer Open loop Omron drive

Standard cabinet RAL 7032 with dimensions Height x Depth x Width: 2190x220x210mm (Optional: INOX cabinet).
Low voltage protections included.
Omron Open loop drive.
Drive programming according to motor characteristics.
Automatic rescue by decompensation by brake control in case of power failure.
Optional door opening via UPS for door operator (not included).

CONTROL PANELS WITHOUT MACHINE ROOM

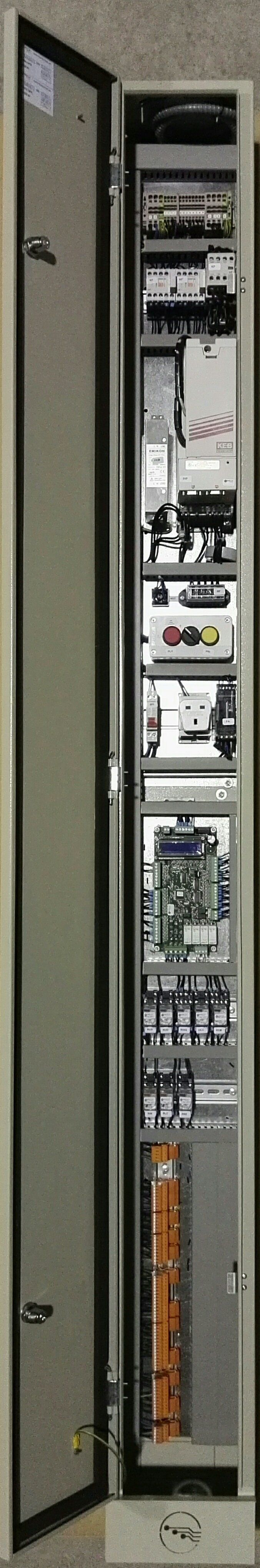

Gearless VVVF Closed Loop KEB Drive

Standard cabinet RAL 7032 with dimensions Height x Depth x Width: 2190x220x210mm (Optional: INOX cabinet).
Low voltage protections included.
Keb or LS drive with encoder card, 230/400V depending on grid voltage.
Drive programming according to motor characteristics.
Automatic rescue by decompensation by brake control in case of power failure.
Optional door opening via UPS for door operator (not included).
