Shaft pre-wiring

THREAD TO THREAD IN LANDING AND CAN BUS IN CABIN
New construction and complete or partial renovation

NEW COMPLETE PRE-ASSEMBLED INSTALLATION (CABIN AND LANDING SIDE) OR HALF INSTALLATION (CABIN SIDE ONLY, MAINTAINING EXISTING OUTDOOR CABLING WITH LIGHTING IN 24V).
Exterior electrical  installation:

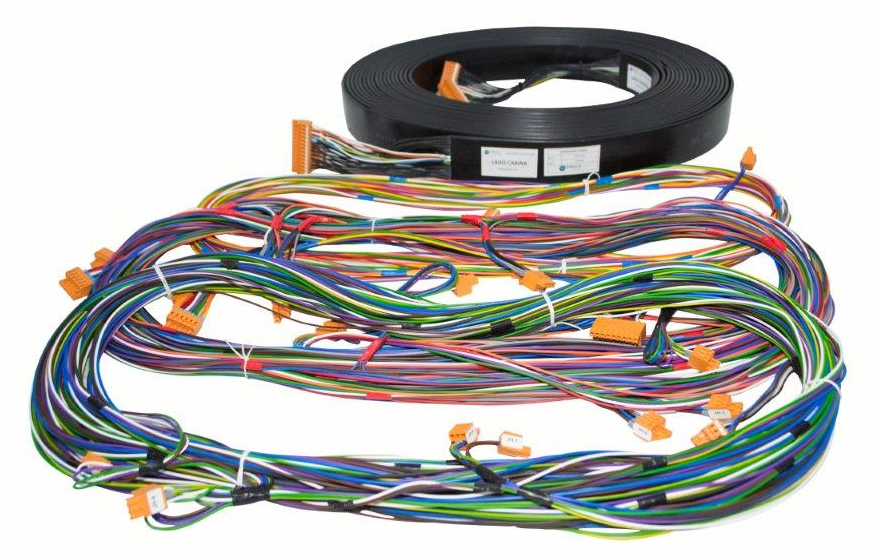

Set of cables with fully plug-in connectors for series, push-buttons and displays.
Box with stop, socket and light switch.
Box with push button for phone call.
Closed cable gland of 80x40mm for machine room.
Slotted cable gland of 60x40mm.
Fixing accessories.
Necessary flanges and screws for installation.

Electrical installation of the cabin:

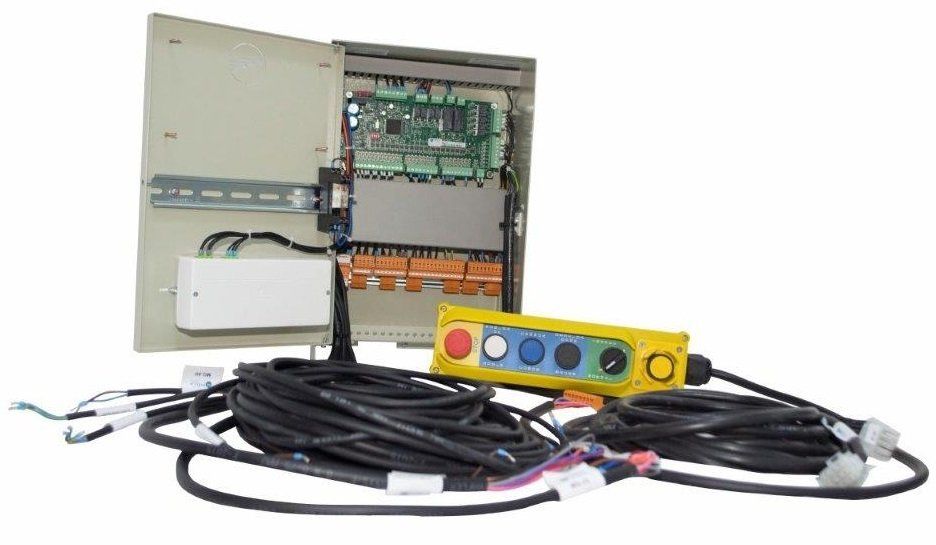

Inspection box with alarm and wired emergency light for all control elements installed in the cabin. Inspection control displaced for more comfort  of the operator during maintenance.
Easy fixing by means of magnet.
Detector kit for positioning of the cabin by means of magnets, with only 2 detectors (built-in flip-flops).
Ending by means of roller and skid.
Flat hoses with Weidmüller connectors and similar according to the characteristics of the installation (EN81: 1/2 or EN81: 20/50) (two shielded wires for CAN BUS communication).
Set of supports for the different hoses, sensors and actuators.
Fixing accessories.

COMPLETE THREAD TO THREAD, IN LANDING AND CABIN
Exclusively for partial renovation

HALF INSTALLATION or ONLY PANEL*
Inspection box with alarm and emergency light in 12Vdc (wired by the customer).
Weidmüller and similar connection terminals for all connections as in the control panel. Printed circuit board of THREAD TO THREAD interconnection (optional, check availability).
Inspection command moved for more confort of the operator during maintenance.
Easy fixing by means of magnet.
Flat hose 28/12/8 wires with Weidmüller connectors and similar (depending on the installation characteristics) (Optional).
Detector kit for cab positioning by means of magnets, with only 2 detectors (built-in flip-flops).
Cabinet-Motor power cable (Optional).
* Provide positioning kit, magnets and optional power hose.
